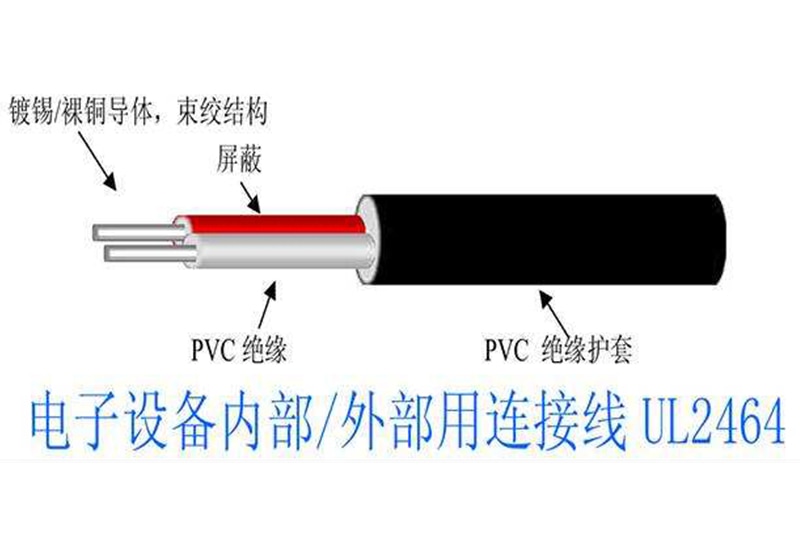

The structure of the electron wire

1. Insulation material mainly adopts high function heat-resistant PVC insulation material imported from Japan. (Soft, semi-rigid, rigid three categories)







2. The sheath material is mainly made of heat-resistant PVC sheath material imported from Japan.







3. The barrier layer is rolled horizontally or woven with ф 0.1mm and above wire diameter tinned soft copper wire, to improve the cable anti-disturbance, anti-noise ability.







4. The conductor is tinned soft copper wire with American wire gauge 14-30AWG and electrical soft copper wire with cross-sectional area of 0.3-2.0 mm2. There are three conductor methods: stranded conductor, OS-1(TCW) conductor, solid conductor. UL electronic line can also pay dividends in the following categories: SRPVC electronic wire, PVC electronic wire, UL high temperature silica gel electronic wire, VDE Teflon +PVC, VDE high temperature silica gel power cord, VDEVDE high temperature Teflon double layer electronic wire, VDE high temperature Teflon line, UL high temperature silica gel line, HIGH temperature silica gel line, UL high temperature Teflon wire, VDE high temperature Teflon wire, UL1618 PVC reinforced electronic wire, UL1617 PVC reinforced electronic wire, XLPVC crosslinked mapping electronic wire: UL3610, UL3785, UL1685, UL3443, UL3336, UL1429, UL1430, UL1431.
